Texture baking features?

MediumSolid

From your personal perspective and experience what baking features would you like to see in your software of choice, irrespective if it's Blender, Maya, Max, Substance Painter, Marmoset Toolbag etc. Would per object baking settings be something you'd like too see? For instance, say you have a hero character model with clothes on, and you'd like to bake a cavity map for the whole model, where the strength (for the lack of a better term) of cavity map would vary between apparel pieces, would that be something you'd need or like? Or is the traditional way good enough for you, where you bake color ID map for those individual pieces and use it as a selection mask in Substance Painter for trying to adjust cavity through levels modifier/filter?

Also, what are some of the drawbacks you most dislike when it comes to your current baking process?

Eric Chadwick

One thing that comes to mind right away is the lack of support for baking passes with surfaces that have transparency. Especially troubling if you need to bake AO for vegetation or hair or whatever that's opacity-mapped.

Also the trouble I get with overlapped UVs. Often game assets have symmetry or reused parts, that can reuse the same UV space. To bake those, you typically have to move all the overlaps outside the (0,1) UV space, and you have to make sure whatever remains inside is not actually facing backwards (and thus invisible to most bakers). Example: http://wiki.polycount.com/wiki/Texture_Baking#UV_Coordinates It would be nice to not have to do that extra work, the baker should be smart enough to figure it out (only render one forward-facing bit of the overlapped UVs).

MediumSolid

Eric Chadwick said:

One thing that comes to mind right away is the lack of support for baking passes with surfaces that have transparency. Especially troubling if you need to bake AO for vegetation or hair or whatever that's opacity-mapped.

Could you please elaborate on that, or provide me with an example, please? I have trouble understanding that. Are you talking about baking from actual high poly surfaces (presumably sculpted) such as a plant onto a low poly object that for instance containes planes/quads that are supposed to catch rays from the high poly leaves and the remainder should remain transparent and not black. Or are you talking about something else, like for instance where we have textures of leaves on planes/quads of our 3D plant model and we want to self-bake an ambient occlusion map where the transparent areas are excluded from baking?

Eric Chadwick said:

Also the trouble I get with overlapped UVs. Often game assets have symmetry or reused parts, that can reuse the same UV space. To bake those, you typically have to move all the overlaps outside the (0,1) UV space, and you have to make sure whatever remains inside is not actually facing backwards (and thus invisible to most bakers). Example: http://wiki.polycount.com/wiki/Texture_Baking#UV_Coordinates It would be nice to not have to do that extra work, the baker should be smart enough to figure it out (only render one forward-facing bit of the overlapped UVs).

I get you here completely, it must be frustrating having to do that all the time when baking, and then placing the mirrored UVs back into (0, 1)-UV space in order to examine the results only to find out that not everything whet as expected and now you're confined to repeating the same process again and again until all baking mistakes have been properly addressed. It's a rinse and repeat process. However, I have to admit that I did not expect this, since I hold a long time belief that this method is a relic of the past, given how much hardware has improved over the past decade or so and that SP became integral part of every 3D artists pipeline way back in 2015.

Eric Chadwick

If the highpoly has transparency, like glass windows, or foliage textured planes, then baking from that is problematic in most bakers… whether directly back onto the highpoly, or onto a lowpoly.

Substance Painter doesn’t alter the need for UV offsets. This is an issue about UV space savings, and how intentional overlapping causes problems with baking.

MediumSolid

Okay, I think I understand better now. For instance, say we have a car with windshields just like any other car, and we decide to bake the car's AO as is without consideration to remove them from the baking process. Naturally, they will contribute to AO baking process and depending on the AO's baking settings (i.e. here) as well as the size of the car in the world, it could potentially, if not most likely, blacken out the whole interior, which is the last thing we want. If that's the case, can't we just keyframe the glass elements in their "original" position, move them to a location where they won't contribute to AO, keyframe that on a different timeline step, bake, and return to previous keyframe thus resetting back to correct position. Sorry if these workaround steps don't make much sense, but this is how I'd do it in Blender.

I realize the purpose and benefit of stacking mirrored UVs one on top of the other, it's just that I falsely I assumed that by doing so it creates problems in SP or even any texture painting software that uses materials, as most materials by default project their texture from a cube onto the 3D model with blending which creates "broken" textures unless you've imported mesh with mirrored parts removed. And I know that this is method of projection is changeable to UV one, but that mode of operation introduces unwanted seams which kinda defeats the purpose of texturing effectively in the 3D space in the first place.

I woldn't be surprised if what I've just explained is plain out wrong, so I'm anticipating a harsh critic, especially after seeing your portfolio full of industry experience.

By the way, if you don't mind me asking, which software do you find yourself using for baking?

Eric Chadwick

Currently using this one
https://rapidpipeline.com/

Of course, I work there, ha ha. But it is a pretty cool baker. When baking AO (and also if you want to remove hidden meshes) we simply ignore surfaces with transparent materials.

gnoop

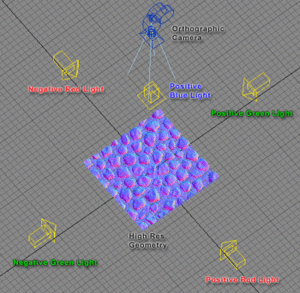

I still love ancient  style  baking cameras  in regular  3d renderers.   When any mesh could became a ray casting camera along its normals .   Octane  has a nice one  for example.  Arnold had one last time I checked .  Bakes alphas  , crypto-matte  or whatever custom AOV you  might want, perfectly looking GI ,  and usually full control  over rays  and what rays see and what don't .    Like  a fur  on a mesh , small scattered geometry or a whole landscape if you need  it.     Set up takes some time although.          Missing it in typical baking tools  a lot .

ps.  Clarisse FX had a perfect one  with ability to paint ray distance on a low poly mesh  instead of tweaking  cages.

sacboi

For Blender 'match-by-name' high to low poly bakes, is basically a feature I'm wishing for albeit hoping the Foundation might think about eventually adding as a branch commit in terms of the latest build series 5.0 although plugins such as Ezy Baker or maybe Simple Bake as well, at present do make the experience somewhat less of a grind but still imo with limited flexibility, when compared too proprietary DCC solutions currently available.

MediumSolid

For Blender 'match-by-name' high to low poly bakes

Is it so that you could isolate certain objects from one another during baking contributions? In other words, you'd like to avoid bake-bleading if that makes sense. Something like this?

sacboi

@MediumSolid

Correct, I had meant via standard naming conventions as opposed to utilising an 'exploded' baked option and as referred too earlier have tested couple of scripts/addons for instance EZ Baker at this point have to say quite a functional little app in which it's UX does offer the choice between native Cycles or bridging bakers which in this case either Marmoset or  Handplane I'm more familiar with.

iam717

Also, what are some of the drawbacks you most dislike when it comes to your current baking process?

i am not hip to the new stuff and use what works, however if i had to try to say anything i'd like its:

dislike not being able to see live previews for any and every map so some sort of live update window to see the results or get to play with results to "test" looks and experiment with things, perhaps even (if it is not grey scaled/black & white img) be able to also go "deeper", into the R,G,B, channels and get to play with those with live updates.

I'd say that would be a "new" thing and if it isn't someone put me onto what does this cause yeah, i'd like this.

Oh yeah have to add this now-a-days that is NOT online, sadly if there is an online one i will not be using it.

MediumSolid

@sacboi
I've never used any of the addon bakers that Blender's community provides, so I have to ask if the problem with exploded baked option is that it's not automatic and has to be done manually or if it's destructive in sense that separates highpoly objects that should be baked together. I don't have any visual examples at my hand right now but I'll think I'll be able to explain in words nicely. Say we have a high poly keyboard with rectractable legs and obviously numerous keys. We plan on baking the base keyboard along with the keys onto a single low poly mesh objects and high poly legs onto their own low poly representation, naturally this requires us to explode the keyboard in order to avoid bake-bleeding. However, the problem now arrises with the fact that our keys have also been exploded as they don't have the same origin as the large low poly base keyboard mesh and thus they won't be captured by it during the baking process. Or is the problem in something else?

And what's your opinion on the skew-offset normals, would inclusion of that in Blender be a big benefit?

And how would you feel about a Blender addon that non-destructively automates most of the aformentioned work with UI friendly fine-tune controls with a downside of being a bit slower in baking in comparison to marmoset toolbag. To be clear I'm not offering anything at the moment, I'm just curious.

MediumSolid

@iam717
So if I got this correctly, you essentially want a form of post processing for baked textures? If that's the case, I'm curious to know for what bake types and exact benefit? Would channel packing and compression(i.e. Normal xyz to Normal zy) also be something of a value to you?

Not to stray too much off topic but I've personaly written a semi-practical add-on for blender that amongst other bake types bakes an AO map that automatically puts it in a postprocessing stage where you can control the smoothness between huge height discrepencies. Hope I'm not breaking any rules or TOS' here but here's a link to it on blenderartists, it's free of charge.

poopipe

Eric Chadwick said:

If the highpoly has transparency, like glass windows, or foliage textured planes, then baking from that is problematic in most bakers… whether directly back onto the highpoly, or onto a lowpoly.

Substance Painter doesn’t alter the need for UV offsets. This is an issue about UV space savings, and how intentional overlapping causes problems with baking.

to add..
it's not just about alpha-blended surfaces (those are hard anyway)
Proper support for alpha-clip / alpha-test on the source mesh is a really useful thing that very few bakers have.
ie. The ability to render through clipped pixels in the materials on the source mesh and capture underlying opaque pixels.
Use cases include baking foliage cards from arrangements of alpha-cilpped leaf meshes  and opaque branch meshes - or baking hair cards down to a surface.

What I'd really like is to be able to push arbitrary data  from the source object's materials onto the target object (essentially, let me write a shader and you bake the result to the target) but that's probably pushing it

MediumSolid

@poopipe
Would it be correct to assume that what you're trying to describe is essentialy backing LOD's from folliage where the lowest LOD has a bilboard for each leave (also has trunk and branch meshes) and each successive LOD's incorporates an even large bilboard that encompases more leaves, all the way until we're left with only two large bilboards that essentially capture the whole tree data from Y and X axis?

poopipe said:

(essentially, let me write a shader and you bake the result to the target) but that's probably pushing it

Well... I believe that Blender already kinda allows for that. But I wouldn't be surprised if you're using another software, since the most common way of creating shaders in Blender is by constructing them via shader nodes and not by writting (even though it's possible via OSL shaders) and you specifically wrote "write". Could you kindly provide an example how and where this would be beneficial?

poopipe

yes - although the lod chain part doesn't bother me personally since both simplygon and speedtree cope well enough with lodding/billboard generation.  im more interested in baking the high-lod leaf atlases

and - to the shader question.
the ability to gather any data I might happen to need from a mesh, composite and transfer that as a texture from a source mesh to a target mesh means that I can reformat data into something useful for my target engine
eg. certain tools pack data into UV sets and vertex color and I might want to gather that, mess with it and bake it to a texture
Where I work we write a fair amount of custom tooling that runs as part of our build process to manipulate data in this way which works great but it's hard to debug for artists as the output is not readily available to for viewing.

if we're talking about blender and you already plan to support 'any' material then it's likely that it'll cover most of my potential use cases - OSL is ok and blenders node based tools seem to be fairly well featured

sacboi

MediumSolid said:

I've never used any of the addon bakers that Blender's community provides, so I have to ask if the problem with exploded baked option is that it's not automatic and has to be done manually or if it's destructive in sense that separates highpoly objects that should be baked together...

As an aside I mostly use TexTools for Blender anyway and since it's introduction I don't bake without a custom cage.

"Or is the problem in something else?"

Primary issue as I mentioned in my initial response. Rather than rely on plugins authored by an enthused userbase I'm nonetheless very thankful of for streamlining an otherwise convoluted process, is to enable artists to effectively work natively due too Blender's version update frequency ones addon library can break, when a dev ceases maintenance.

"And what's your opinion on the skew-offset normals, would inclusion of that in Blender be a big benefit?"

Not sure what you mean?

"And how would you feel about a Blender addon that non-destructively automates most of the aformentioned work with UI friendly fine-tune controls"

I work from a laptop and textools for the time being at least to extent resolves my personal workflow as a hard surface modeler by using Blender 3.6.1 (I've found is fairly stable) but tbh if push comes to shove, 2016 3ds Max would be DCC app of choice.

MediumSolid

sacboi said:

"And what's your opinion on the skew-offset normals, would inclusion of that in Blender be a big benefit?"

Not sure what you mean?

I'm mainly talking about skew-normal correction that only, at least to my knoweldge, Marmoset Toolbag has. It eliminates the need for creating support loops in your low poly mesh that not only reduces polycount but also saves on time. I know that the conses is that modern GPU's can handle vast amount of triangles, but that's not exactly the full story, there's a thing called overdraw, and limiting the amount of triangles in a scene is very beneficial.

sacboi

Ah got it, skewing errors albeit also important to note how 'waviness' may arise without understanding averaged normals and ray projection.

I might also add this Blender workaround as well and afaik Cycles engine, a path tracer is CPU reliant.

MediumSolid

@sacboi
I've seen the workaround video before, and it's quite tedious, requires additional (unnecessary) geometry and thus incredibly time consuming. This could be "easily" circumvented by procedurally generating additional geometry and carefully capturing/storing the custom split normals from the original mesh and standard normals around its edges. This way you'd be able to bake any map without skewing errors that can be displayed on your original low poly mesh, yes... the one before adding additional geometry. I know that what I wrote doesn't make much sense, and hopefully in couple of months I'll finish the algorithm that does exactly that and I'll demonstrate.

As for "waviness", I'm not too sure about solution for it but I believe that it could also be addressed in a similar manner with a bit more extra steps introduced in the aforementioned "algorithm".

MediumSolid

poopipe said:

yes - although the lod chain part doesn't bother me personally since both simplygon and speedtree cope well enough with lodding/billboard generation.  im more interested in baking the high-lod leaf atlases

So I assume the source object(leaf) is an actual high poly mesh and during AO bake where the rays (projected from the quad/bilboard) happen to miss we're left a black color instead of transparency, and we can't write a shader that uses black parts of the leaf texture as a transparency/opacity factor since some occluded parts of the leaf are black, is that the issue? Because I always thought that's why we bake a simple emission mask, so that we could discard unnecessary pixels, but I'm guessing the idea is to avoid baking additional textures.

and - to the shader question.
the ability to gather any data I might happen to need from a mesh, composite and transfer that as a texture from a source mesh to a target mesh means that I can reformat data into something useful for my target engine
eg. certain tools pack data into UV sets and vertex color and I might want to gather that, mess with it and bake it to a texture
Where I work we write a fair amount of custom tooling that runs as part of our build process to manipulate data in this way which works great but it's hard to debug for artists as the output is not readily available to for viewing.

That's really interesting, but I'm struggling how that would be useful, since with my limited knoweldge and experience I always assumed that it's better to  simply export data stored in vertices as is and do whatever manipulation you want to do in your shader during run time, instead of baking them to a texture and "waste" precious resources.

if we're talking about blender and you already plan to support 'any' material then it's likely that it'll cover most of my potential use cases - OSL is ok and blenders node based tools seem to be fairly well featured

Well, I'm no expert when it comes to blender's shader nodes but I've noticed that they lack some fundamental stuff such as partial derivatives and that they're object bound shader nodes which means you can't perform any operations on the image output, for viewport display reasons, ie. outline effect. Thus I find it fairly limited, great for prorotyping, though.
