3DS Max - Cap hole with polys intact

BraXzy · Feb 2014

I've been looking for how to do this for awhile and never found out so have done this manually but I am hoping there is a way. When capping a hole, in the back of an object for example.. is there a set way to make all of the loops connect? So rather than having a huge N-Gon you instead have a bunch of polys connected to the stuff round the side.

PolyHertz · Feb 2014

Here's a script I wrote that'll do what you're asking. It only works in Editable poly mode (never got around to adding Edit_Poly modifier support), but maybe it'll work for you're purposes:

--ASSUMED: in editable poly mode, with one or more borders selected. Edit_Poly modifiers not supported.

allEdjs = polyop.getEdgeSelection $ as array
curSubOBJlvl = subobjectLevel
subobjectLevel = 2

--Find out how many borders their are among the edge selection, and store them each separately.
allBorders = #()
allBordersFlat = #()
curLoop = 1
for i in allEdjs do
    (
    if ((finditem allBordersFlat i) == 0) do
        (
        $.EditablePoly.SetSelection #Edge ((polyop.getBorderFromEdge $ i) as bitArray)
        allBorders[curLoop] = $.EditablePoly.GetSelection #Edge as array
        join allBordersFlat allBorders[curLoop]
        curLoop += 1
        )
    )


curLoop = 1
while (allBorders.count >= curLoop) do
    (
    --Crawl from the first edge to two adjacent ones, then afterwords do the rest in a loop.
    curVrts = polyop.getVertsUsingEdge $ allBorders[curLoop][1] as array
    curEdjs = polyop.getEdgesUsingVert $ curVrts[1] as array
    buff = polyop.getEdgesUsingVert $ curVrts[2] as array
    join curEdjs buff

    keptEdjs = #()
    for i in curEdjs do (if ((finditem allBorders[curLoop] i) != 0 and allBorders[curLoop][1] != i) do (append keptEdjs i))
    $.EditablePoly.SetSelection #Edge (keptEdjs as bitArray) --quick and dirty way to remove duplicates
    keptEdjs = $.EditablePoly.GetSelection #Edge as array


    --Start loops--
    finalEdjs = #(keptEdjs[1], keptEdjs[2])
    latestEdjs = #(keptEdjs[1], keptEdjs[2])
    loopKill = 0
    for i in allBorders[curLoop] do
        (
        temp = #()
        for k in latestEdjs do
            (
            curVrts = polyop.getVertsUsingEdge $ k as array
            curEdjs = polyop.getEdgesUsingVert $ curVrts[1] as array
            buff = polyop.getEdgesUsingVert $ curVrts[2] as array
            join curEdjs buff

            buff = #()
            for i in curEdjs do (if ((finditem allBorders[curLoop] i) != 0 and (finditem latestEdjs i) == 0 and allBorders[curLoop][1] != i) do (append buff i))
            buff = join buff finalEdjs
            $.EditablePoly.SetSelection #Edge (buff as bitArray) --quick and dirty way to remove duplicates
            buff = $.EditablePoly.GetSelection #Edge as array

            finalEdjs = (buff as bitArray)
            temp = (buff as bitArray)

            if ((finalEdjs as array).count == (allBorders[curLoop].count - 2)) do (loopKill = 1 ; exit;)
            )
        latestEdjs = temp
        if loopKill == 1 do (print "killed" ; exit)
        )

    $.EditablePoly.SetSelection #Edge (finalEdjs as bitArray)
    $.EditablePoly.Bridge ()
    curLoop += 1
    )

subobjectLevel = curSubOBJlvl

miauu · Feb 2014

Something like this:

[ame="

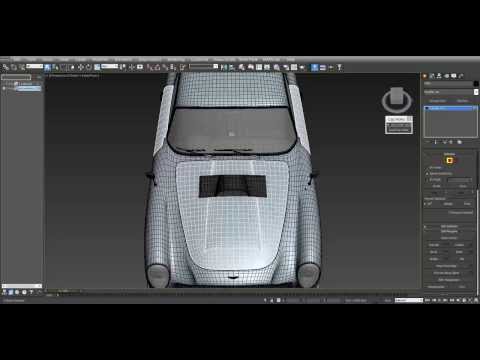

http://www.youtube.com/watch?v=qlE8tIm-SIw"]miauu's Quad Cap Holes - YouTube[/ame]

[ame="

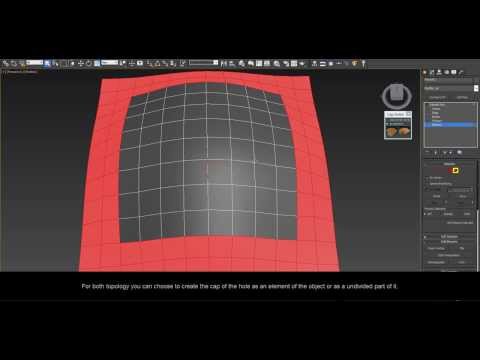

http://www.youtube.com/watch?v=VWj_y7rS5vM"]miauu's Quad Cap Holes v. 1.1 - YouTube[/ame]

PolyHertz · Feb 2014

Ah yes, the one I wrote is basically just for mass bridge-capping on lowpoly models, miauus one is more for highpoly and stuff that's not geometry constrained. Both are useful for different purposes.

BraXzy · Feb 2014

miauu wrote: »

Something like this:

miauu's Quad Cap Holes - YouTube

miauu's Quad Cap Holes v. 1.1 - YouTube

Holy crap exactly like that. I'm surprised it isn't a standard feature. Thanks to both of you for the help

CrazyButcher · Feb 2014

http://allesimfluss.biz/ also has primarily quad-based hole capping, that allows you to refine interpolation, and surface flow

miauu · Feb 2014

CrazyButcher wrote: »

http://allesimfluss.biz/ also has primarily quad-based hole capping, that allows you to refine interpolation, and surface flow

+1

onionhead_o · Feb 2014

oh how i wish there was something like this for Maya. I will pay for it for sure. sorry to sabotage this thread.

D4V1DC · Feb 2014

CrazyButcher wrote: »

So no one notices that triangle at the mid/bottom left side?
oppsy was i not supposed to mention it.

:poly136:

Luka · Feb 2014

its not an even sided hole, obviously there will need to be a triangle somewhere, and if it were even sided, it wouldnt be there.

oppsy, just saying
