rebind ctrl-backspace?

AlecMoody · May 2011

I have been building a lowpoly from a detailed sub-d cage for the last few days and it really slows me down to have to pull my hands away to hit ctrl-backspace. Any way to rebind this to another key? I would use one of those third party tools that can bind a macro to any key but I dont want to lose the ability to type with that key in max (in this case the B key would be what I am using). Is there a function for this anywhere in the max UI commands? I tried everything that begins with "remove."

I have remove loop bound right now but there are times when its not what I want.

passerby · May 2011

hmm i havent used max in a few years so i dont know the name of the action, but you could open the maxscript listener and hit the key to figure out what it's called to max.

BeatKitano · May 2011

There is no way to rebind ctrl+backspace to another function (at least that I know of), backspace is not recognized as a valid keystroke in the binds.

But you can assign that function to another key, just bind VertexRemove in the "Ribbon - Modeling" category.

I'm using a custom macro for that:

MacroScript Remover
Category:"BTK Scripts"
Tooltip:"Remover"
(


if (selection.count == 1 ) then -- check if there's only one mesh selected
(
		curObj = $.baseobject
case subobjectlevel of
(

	1: -- selection=vertex
	(
		macros.run "Ribbon - Modeling" "VertexRemove"
	)

	2:-- selection=edge
	(
		macros.run "Ribbon - Modeling" "EdgeRemove"
	)

	4:-- selection=face
	(
		lolface=polyop.getfaceselection curObj
		polyop.deleteFaces	curObj lolface
	)

)
)
)

[HP] · May 2011

BeatKitano wrote: »

But you can assign that function to another key, just bind VertexRemove in the "Ribbon - Modeling" category.

Always wondered that, thanks. I've been meant to reassign this hotkey for years.

Sparx_25 · Jul 2011

I have too this problem. I cant rebind "clean remove" function to another key. I dont like pressing CTRL + Backspace. "VertexRemove" doesnt do clean remove for me. It only remove edge but not associated vertecies. It seems that clean remove is missing in custom keyboard menu. Only solution to this I see in some good script but i cant do this things

Someone pls help me with this.

miauu · Jul 2011

macroscript CleanRemove
category:"miauu"
tooltip:"As default max Ctrl+Backspace"
buttonText:"Clean Remove"
(
    if selection.count ==1 and classof selection[1] == Editable_Poly then
    (
        local currObj = $
        if subobjectlevel==1 then
        (
            vertSel01 = polyop.getVertSelection currObj
            currObj.EditablePoly.ConvertSelectionToBorder #Vertex #Edge
            currObj.Remove selLevel: #Edge
            vertsToRemove = for i in vertSel01 where (polyop.getEdgesUsingVert currObj i ).numberSet <= 2 collect i
            polyop.setVertSelection currObj vertsToRemove
            currObj.Remove selLevel: #Vertex
            redrawViews()
        )
        else
        (
            if subobjectlevel==2 or subobjectLevel==3 then
            (
                edgeSel01 = polyop.getEdgeSelection currObj
                edgeVerts = polyop.getVertsUsingEdge currObj edgeSel01
                currObj.Remove selLevel:#Edge
                vertsToRemove = for i in edgeVerts where (polyop.getEdgesUsingVert currObj i ).numberSet <= 2 collect i
                polyop.setVertSelection currObj vertsToRemove
                currObj.Remove selLevel: #Vertex
                redrawViews()
            )
            else
                messagebox "Go to Vertex or Edge sub-object level" title:"miauu Script Error!!!"
        )
    )
    else
        messagebox "The selected object is not an Editable Poly object" title:"miauu Script Error!!!"
)

Sparx_25 · Jul 2011

Finally script that actually works!

Thank you miauu. This will help me a lot...

miauu · Jul 2011

Sparx_25 wrote: »

Finally script that actually works! Thank you miauu. This will help me a lot...

Let me know if you want support for edit poly modifier.

Sparx_25 · Jul 2011

miauu wrote: »

Let me know if you want support for edit poly modifier.

That would be great, because i will definatelly use both edit and editable poly

.

miauu · Jul 2011

Tonight I will update the script with Edit_Poly support.

miauu · Jul 2011

The support for Edit_Poly modifier is added.

macroscript CleanRemove
category:"miauu"
tooltip:"As default max Ctrl+Backspace"
buttonText:"Clean Remove"
(
    if selection.count ==1 then
    (
        function GetEdgesUsingVertEPM curSel verts =
        (
            local edgeVerts = #()
            for i in verts do
            (
                edgeVerts[1] = curSel.GetEdgeVertex i 1 node:$
                edgeVerts[2] = curSel.GetEdgeVertex i 2 node:$
            )
            edgeVerts
        )
        local curObj = modPanel.getCurrentObject()
        if (classOf curObj) == Editable_Poly do
        (
            if subobjectlevel==1 then
            (
                vertSel01 = polyop.getVertSelection curObj
                curObj.EditablePoly.ConvertSelectionToBorder #Vertex #Edge
                curObj.Remove selLevel: #Edge
                vertsToRemove = for i in vertSel01 where (polyop.getEdgesUsingVert curObj i ).numberSet <= 2 collect i
                polyop.setVertSelection curObj vertsToRemove
                curObj.Remove selLevel: #Vertex
                redrawViews()
            )
            else
            (
                if subobjectlevel==2 or subobjectLevel==3 then
                (
                    edgeSel01 = polyop.getEdgeSelection curObj
                    edgeVerts = polyop.getVertsUsingEdge curObj edgeSel01
                    curObj.Remove selLevel:#Edge
                    vertsToRemove = for i in edgeVerts where (polyop.getEdgesUsingVert curObj i ).numberSet <= 2 collect i
                    polyop.setVertSelection curObj vertsToRemove
                    curObj.Remove selLevel: #Vertex
                    redrawViews()
                )
                else
                    messagebox "Go to Vertex or Edge sub-object level" title:"miauu Script Error!!!"
            )
        )
        if (classOf curObj) == Edit_Poly do
        (
            if subobjectlevel==1 then
            (
                vertSel01 = curObj.getSelection #Vertex
                curObj.ConvertSelectionToBorder #Vertex #Edge
                curObj.buttonOp #RemoveEdge
                vertsToRemove = for i in vertSel01 where (GetEdgesUsingVertEPM curObj #(i) ).count <= 2 collect i
                curObj.setSelection #Vertex (vertsToRemove as bitarray)
                curObj.buttonOp #RemoveVertex
                redrawViews()
            )
            else
            (
                if subobjectlevel==2 or subobjectLevel==3 then
                (
                    edgeSel01 = curObj.getSelection #Edge
                    curObj.ConvertSelection #Edge #Vertex
                    curObj.buttonOp #RemoveEdge
                    edgeVerts = curObj.getSelection #Vertex
                    vertsToRemove = for i in edgeVerts where (GetEdgesUsingVertEPM curObj #(i) ).count <= 2 collect i
                    curObj.setSelection #Vertex (vertsToRemove as bitarray)
                    curObj.buttonOp #RemoveVertex
                    redrawViews()
                )
                else
                    messagebox "Go to Vertex or Edge sub-object level" title:"miauu Script Error!!!"

Sparx_25 · Jul 2011

It doesnt work in edit poly, only removes edge, verticies are still there

miauu · Jul 2011

It works for me.

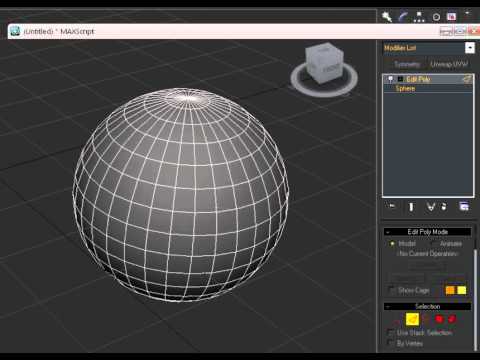

Watch the video:

[ame]

http://www.youtube.com/watch?v=5kRR14pMN0E[/ame]

Can you send me the scene that is problematic for you. Note that I use max2009.

Sparx_25 · Jul 2011

That is strange. Maybe its because I am using 2010. Basically I just started new clean scene, add some primitive like sphere, convert to editable poly - no problem with removing both edges and verticices. Add edit poly modifier - remove only edges.

miauu · Jul 2011

I don't have max2010 to test this. Sorry.

Sparx_25 · Jul 2011

miauu wrote: »

I don't have max2010 to test this. Sorry.

No problem miauu

, I will try my best to fix it for 2010 version.

miauu · Jul 2011

May be I will hav the chance to use one friends notebook with installed max2010 for a few days, so I can try to fix the problem.

Sparx_25 · Jul 2011

miauu wrote: »

May be I will hav the chance to use one friends notebook with installed max2010 for a few days, so I can try to fix the problem.

I really hope you solve it out. I tried some modifications on your script, but It doesnt work

miauu · Jul 2011

I just tested the script on max2011. Everything works fine. I don't know why on max2010 the Edit_Poly support is not working for you.
Try this code:

macroscript CleanRemove
category:"miauu"
tooltip:"As default max Ctrl+Backspace"
buttonText:"Clean Remove"
(
    if selection.count ==1 then
    (
        function GetEdgesUsingVertEPM curSel verts =
        (
            local edgeVerts = #()
            for i in verts do
            (
                edgeVerts[1] = curSel.GetEdgeVertex i 1 node:$
                edgeVerts[2] = curSel.GetEdgeVertex i 2 node:$
            )
            edgeVerts
        )
        local curObj = modPanel.getCurrentObject()
        if (classOf curObj) == Editable_Poly do
        (
            if subobjectlevel==1 then
            (
                vertSel01 = polyop.getVertSelection curObj
                curObj.EditablePoly.ConvertSelectionToBorder #Vertex #Edge
                curObj.Remove selLevel: #Edge
                vertsToRemove = for i in vertSel01 where (polyop.getEdgesUsingVert curObj i ).numberSet <= 2 collect i
                polyop.setVertSelection curObj vertsToRemove
                curObj.Remove selLevel: #Vertex
                redrawViews()
            )
            else
            (
                if subobjectlevel==2 or subobjectLevel==3 then
                (
                    edgeSel01 = polyop.getEdgeSelection curObj
                    edgeVerts = polyop.getVertsUsingEdge curObj edgeSel01
                    curObj.Remove selLevel:#Edge
                    vertsToRemove = for i in edgeVerts where (polyop.getEdgesUsingVert curObj i ).numberSet <= 2 collect i
                    polyop.setVertSelection curObj vertsToRemove
                    curObj.Remove selLevel: #Vertex
                    redrawViews()
                )
                else
                    messagebox "Go to Vertex or Edge sub-object level" title:"miauu Script Error!!!"
            )
        )
        if (classOf curObj) == Edit_Poly do
        (
            if subobjectlevel==1 then
            (
                vertSel01 = curObj.getSelection #Vertex
                curObj.ConvertSelectionToBorder #Vertex #Edge
                curObj.buttonOp #RemoveEdge
                vertsToRemove = for i in vertSel01 where (GetEdgesUsingVertEPM curObj #(i) ).count <= 2 collect i
                curObj.setSelection #Vertex (vertsToRemove as bitarray)
                curObj.buttonOp #RemoveVertex
                redrawViews()
            )
            else
            (
                if subobjectlevel==2 or subobjectLevel==3 then
                (
                    edgeSel01 = curObj.getSelection #Edge
                    curObj.ConvertSelection #Edge #Vertex
                    curObj.buttonOp #RemoveEdge
                    edgeVerts = curObj.getSelection #Vertex
                    vertsToRemove = for i in edgeVerts where (GetEdgesUsingVertEPM curObj #(i) ).count <= 2 collect i
                    curObj.setSelection #Vertex (vertsToRemove as bitarray)
                    curObj.buttonOp #RemoveVertex
                    redrawViews()
                )
                else
                    messagebox "Go to Vertex or Edge sub-object level" title:"miauu Script Error!!!"
            )
        )
    )
)

Dreamexpress · Jul 2011

You dont need to make a script, just rebind edge remove under ribon - modeling to a hotkey, then hold down ctrl and press it just like you do with ctrl backspace

(correction: assign both the hotkey you want and ctrl plus the hotkey you want as shortcut too edge remove for me d , ctrl + d )

Sparx_25 · Jul 2011

Dreamexpress wrote: »

You dont need to make a script, just rebind edge remove under ribon - modeling to a hotkey, then hold down ctrl and press it just like you do with ctrl backspace

(correction: assign both the hotkey you want and ctrl plus the hotkey you want as shortcut too edge remove for me d , ctrl + d )

Yeah it works Dreamexpress. Heh, I tried to rebing edge remove in ribon-modeling category before to Y key, but it didnt work of course. But when I tried your method it works both in editable and edit poly. I only bind it to CTRL+Y. Thanks

Thanks Miauu for your effort in helping me :thumbup:

tabacaru.mvlad · Apr 2013

Dreamexpress wrote: »

You dont need to make a script, just rebind edge remove under ribon - modeling to a hotkey, then hold down ctrl and press it just like you do with ctrl backspace

(correction: assign both the hotkey you want and ctrl plus the hotkey you want as shortcut too edge remove for me d , ctrl + d )

Anyone know if assigning another shortcut to ctrl+backspace ( from ribbon-modelling) will the backspace button still work (delete edges without vertices) ? I ask because from a mistake I change the delete object shortcut ( which is delete ) and I couldn't assign it back, I have to reset all shortcut. Max it`s not supporting backspace or delete as shortcut, if u change them you couldn't put them back.

XibaD · Jun 2016

I'm bumping this thread to post an update to miauu's script, made by the man himself recently. It works with edges, vertices, multiple selections in editable poly and edit poly.

Thank you miauu!

--******************************************************************************************************
-- Created: 		16-07-2011
-- Last Updated:	08-06-2016
-- Version:			1.00
--
-- Author :  Kostadin Kotev / miau_u@yahoo.com / http://miauumaxscript.blogspot.bg/
-- Version:  3ds max 2009 (10) (should work in older versions too!)
--
-- Discription: DESCRIPTION
-- Usage: RUN IT
--
-- Wishlist:
--
--******************************************************************************************************
-- MODIFY THIS AT YOUR OWN RISK

macroscript CleanRemove
category:"miauu"
tooltip:"As default max Ctrl+Backspace"
buttonText:"Clean Remove"
(
	local bitFlag = (bit.set 0 27 true)
	local poSetVertFlags = polyop.setVertFlags
	local poGetVertsByFlag = polyop.getVertsByFlag
	local poGetEdgeSelection = polyop.getEdgeSelection

	if selection.count ==1 then
	(
		function GetVertsByFlagEPM obj flag =
		(
			local vertsBA = #{}
			vertsBA = poGetVertsByFlag obj flag
			--	return
			vertsBA
		)
		function SetVertsByFlagEPM obj vertsBA flag =
		(
			if vertsBA == undefined do
				poSetVertFlags obj vertsBA flag undoable:true
		)

		function GetEdgesUsingVertEPM curSel verts =
		(
			local edgeVerts = #()
			for i in verts do
			(
				edgeVerts[1] = curSel.GetEdgeVertex i 1 node:$
				edgeVerts[2] = curSel.GetEdgeVertex i 2 node:$
			)
			edgeVerts
		)
		local curObj = modPanel.getCurrentObject()
		if (classOf curObj) == Editable_Poly do
		(
			if subobjectlevel==1 then
			(
				vertSel01 = polyop.getVertSelection curObj
				curObj.EditablePoly.ConvertSelectionToBorder #Vertex #Edge
				curObj.Remove selLevel: #Edge
				vertsToRemove = for i in vertSel01 where (polyop.getEdgesUsingVert curObj i ).numberSet <= 2 collect i
				polyop.setVertSelection curObj vertsToRemove
				curObj.Remove selLevel: #Vertex
				redrawViews()
			)
			else
			(
				if subobjectlevel==2 or subobjectLevel==3 then
				(
					edgeSel01 = polyop.getEdgeSelection curObj
					edgeVerts = polyop.getVertsUsingEdge curObj edgeSel01
					SetVertsByFlagEPM curObj edgeVerts bitFlag
					curObj.Remove selLevel:#Edge
					edgeVertsBA = GetVertsByFlagEPM curObj bitFlag
					vertsToRemove = for i in edgeVertsBA where (polyop.getEdgesUsingVert curObj i ).numberSet <= 2 collect i
					polyop.setVertSelection curObj vertsToRemove
					curObj.Remove selLevel: #Vertex
					redrawViews()
				)
				else
					messagebox "Go to Vertex or Edge sub-object level" title:"miauu Script Error!!!"
			)
		)
		if (classOf curObj) == Edit_Poly do
		(
			if subobjectlevel==1 then
			(
				vertSel01 = curObj.getSelection #Vertex
				curObj.ConvertSelectionToBorder #Vertex #Edge
				curObj.buttonOp #RemoveEdge
				vertsToRemove = for i in vertSel01 where (GetEdgesUsingVertEPM curObj #(i) ).count <= 2 collect i
				curObj.SetSelection #Vertex #{} node:(selection[1])
				curObj.Select #Vertex (vertsToRemove as bitarray)
				curObj.buttonOp #RemoveVertex
				redrawViews()
			)
			else
			(
				if subobjectlevel==2 or subobjectLevel==3 then
				(
					edgeSel01 = curObj.getSelection #Edge
					curObj.ConvertSelection #Edge #Vertex
					curObj.buttonOp #RemoveEdge
					edgeVerts = curObj.getSelection #Vertex
					vertsToRemove = for i in edgeVerts where (GetEdgesUsingVertEPM curObj #(i) ).count <= 2 collect i
					subobjectlevel = 1
					curObj.SetSelection #Vertex #{} node:(selection[1])
					curObj.Select #Vertex (vertsToRemove as bitarray)
					curObj.buttonOp #RemoveVertex
					curObj.commit()
					subobjectlevel==2
					redrawViews()
				)
				else
					messagebox "Go to Vertex or Edge sub-object level" title:"miauu Script Error!!!"
			)
		)
	)
)

Mant1k0re · Jun 2016

I had totally given up on this, thanks for the necrobump!

Cathodeus · Jun 2016

Hey guys,

This is definitly where keyhydra can be of some help. As it can, do all of this. www.onikanabo.com/keyhydra.

You be able to assign tools on 'space', 'del', backspace' while still keeping the original behaviour. Exemple : keeping 'space' for lock selection, but pressing 'twice' the space key will do 'extrude' or whatever you want as you can assign whatever you want inside the shortcut editor

Availability of the trial should be next week

Massimo

huffer · Jun 2016

Miauu's script doesn't work for me, binding a key and Ctrl + key for VertexRemove works, however, I'd like to have it reversed, pressing the key should do what Ctrl + Key does. Right now I use the Uniremover script which works well.

OlivierMcClish · Apr 2022

Hey everyone couple years later!

I tried the miauu script but it's seams not working in max 2022. Is someone as somewhat figure it out yet?

Thx!

Neox · May 2022

isn't it just "Remove (Poly)" ?

tested it in max 2011 and max 2020. just tested on a few loops, or verts. same result als ctrl+backspace. or not?

i guess @perprerp would know?

Kanni3d · May 2022

Yep, it's just "Remove", can be bound to anything - dunno where this confusion stemmed from, but it's brought up often lol.

rebind ctrl-backspace?

Replies
