[WIP] AR-15

cromadbomber

Early Blockout:

cromadbomber

Hello. I started modeling the reciever by placing that cylinder first. (Where stock should go.) According to diameter of that cylinder I adjusted the width of reciever by making it a bit tinier than cylinder.

cromadbomber

Just quick test on rail in ZBrush.

cromadbomber

Almost done with lower reciever blockout.

cromadbomber

Some Zbrush tests. Ignore black thing on last image it is some rendering error. I will polish edges more.

cromadbomber

Upper receiver is not yet finished. c&c welcome.

ComradeDispenser

looks spot on mate

Ckafee

this looks really fuccking cool! Keep up the good work, and i will follow you progress:D

cromadbomber

Here is the MAGPUL stock. I still have to add some smaller details.

cromadbomber

Tho Id just do a quick meshup of what I currently have so far.
There are still some things missing on lower receiver and handle isnt finished yet along with stock.
But crits welcome on overal modeling and maybe if something is off.

edit. here is other side aswel

cromadbomber

I am almost done with stock.
c&c welcome

cromadbomber

I started blocking out front handguard. I decided for Centurion C4 rail.

LaurentiuN

Really good looking weapon, nice job so far!!

ComradeDispenser

magazine looks way too small compared to the weapon

Gazu

Only Critique so far : Magazine looks a bit small like Comrade said.
Rest looks cooly!

cromadbomber

Yep haha. I modeled magazine from a seperate reference so I haven't properly scaled it in the scene. Thanks guys for heads up!

Zi0

Look really sweet so far, keep it up man!

cromadbomber

Coming back to this project.
Here is some scope I started(Not sure about name xD) Very WIP!

Kobalt Kiwii

Mmmmmmm so purdy

RickGreeve

Yo this is some sweetness

cromadbomber

Haven't done much past 2 days but I tho Id post a quick mash up of things I got so far.
(Shit isn't dynameshed nor edge polished)

Live booleans in ZBrush(Aweeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeesome)

cromadbomber

Ok I think im gonna call this scope done.

zachagreg

Are you using Maya for just basic block in shapes and then going over to Zbrush in order to do booleans and detail? Im just getting into weapon modeling and would love to some info on the process for one of these pieces.

cromadbomber

@zachagreg A mixture of zbrush booleans and Maya's creasing. Booleans that aren't overly complex I do it in Maya and crease the edges then send it to Zbrush via GoZ. For boolean shapes that require alot of cleanup later I just use live booleans.

Creased edges marked in heavier blue.

zachagreg

@cromadbomber Thank's very much for that. I always get in this weird cycle of confusion when it comes to when to switch programs. Great stuff you're doing, can't wait to see more!

cromadbomber

Dynameshed so far 4 parts and added some minor details.

zachagreg

Another question popped up when I was going over some Zbrush Live Boolean tuts. How do you go about your low poly conversion? Do you consider the Maya boolean block the lowpoly and then just fix that up and bake or do you do a retopo for this type of workflow?

cromadbomber

@zachagreg After I am done with zbrush I boolean all the parts in Maya and clean it up a bit.

cabooes

When you clean up in Maya what settings do you have set to so everything retains its shape? Decimating and dynamesh to zremesh always gives me messed up edges after booleans.

cromadbomber

This is the base mesh in Maya. Pretty much as you can see at the moment is that my lowpoly is basically highpoly. As for the scope part. I import it into Zbrush and do all boolean operations in there. After that I repeat the same step in Maya - I just boolean all the parts and delete junk faces/verts that were produced by Mayas booleans. Thats pretty much it. No decimation/Zremesher and what not.

cabooes

Damn that easy I gotta give this a shot. You planning on texturing the gun?

cromadbomber

Havent posted in a while. Some work on barrel.

cromadbomber

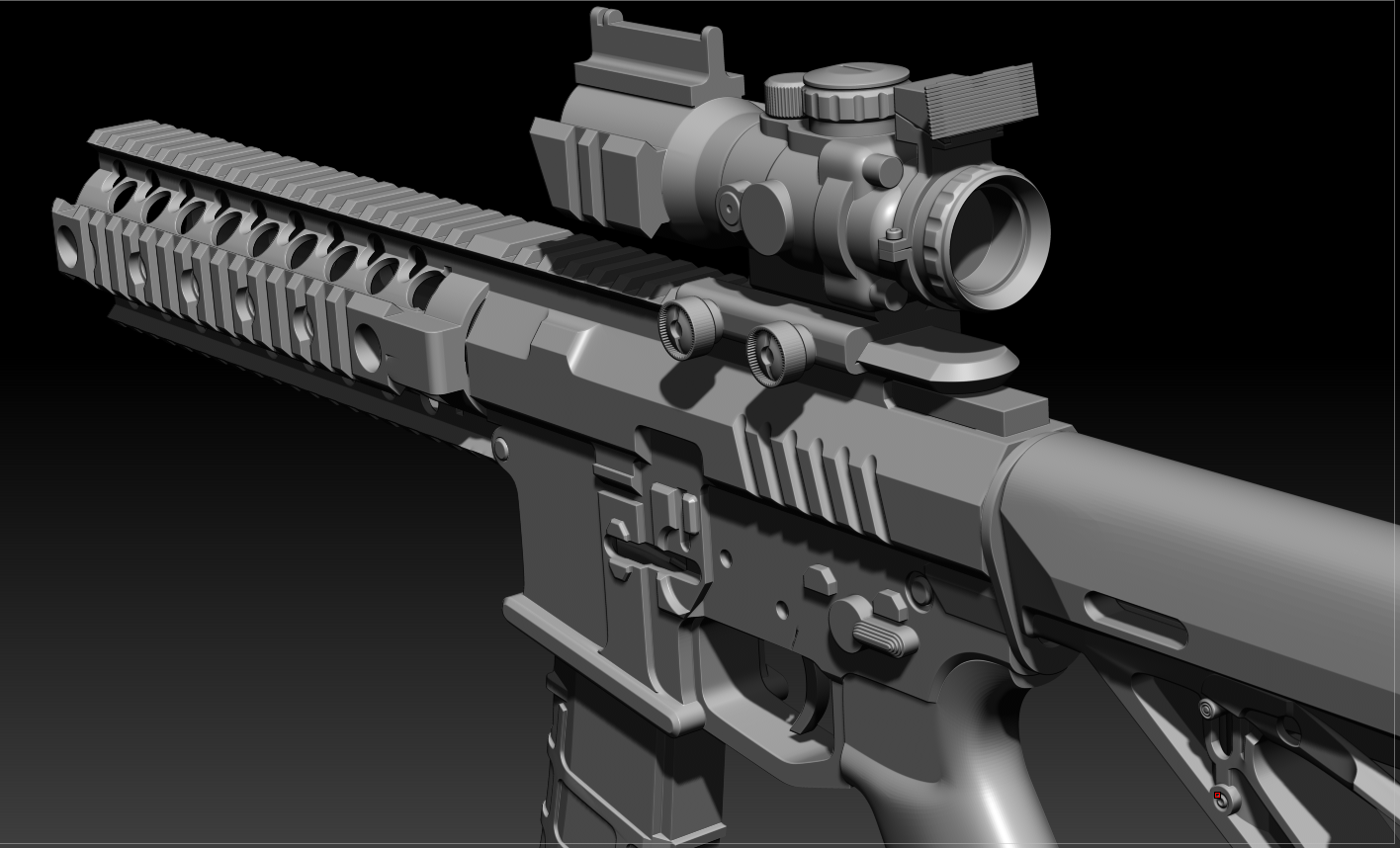

Playing around with rendering.
