I fail copying this Tutorial-Material-Network and getting the same results

SimonT

Hi Friends!

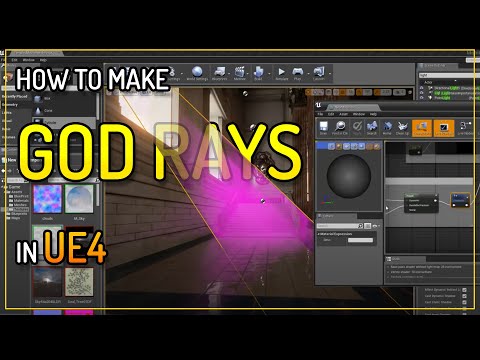

I'm trying to copy this simple material network but I'm just not able to get the same results as this guy here in this video: https://www.youtube.com/watch?v=gOdTrIB5te0&feature=youtu.be&t=12m16s

BEFORE YOU ASK: This guy refuses to help by disabling the comment function below the video and having t his in its about:

 If any of this is useful to you then great however I dont respond to comments or offer help.

Here you can see, that he uses pretty simple cloud textures and by adding them, he get's this pretty strong contrast between black/white in his material (the left connection only direct to texture-panners).



My first problem is, that when I make such a texture like he explains (https://youtu.be/gOdTrIB5te0?t=10m) and add them, it looks like this (texture has SRGB set to true, if it's set to false, it's even brighter):



But it get's more weird. He then previews the 2nd ADD-Node and adds 0.5 which SHOULD make everything brighter (like I would expect it from ADD) but in his case the blacks stay black:



In my case it now looks like that:



The only way I could copy this effect was to extremely increase the contrast of the cloud textures and use MULTIPLY instead of ADD:



But even then: When I lader ADD 0.5 i get brightness everywhere and nothing stays black like in his example:



Does anyone has an Idea?  Do I miss a setting somewhere?

Obscura

It should be stay black when black areas are going on top of each other, and it should be a lot darker where almost black areas going. Also, I'd disable sRGB on this. Could you show how your cloud filter texture looks? I know its sowed on your images, but its hard to see on the combines sample. I used the same technique for some procedural clouds earlier and worked for me too. I think your could filter texture would need more contrast, but I can tell more after seeing your texture. Howerer, I'm also not understanding how he still get black after adding 0.5... But... If you make a multiplied version too, and multiply that to the result of the add then you should get the same result as what he get, Cause it would darken the needed areas back.

SimonT

@Obscura
Sure, here are the textures. I already increased the contrast a lot. Before it was the standard Photoshop > Filter > Render > Clouds. The blue channel is used a smask but in the example i only used R + G.

Obscura

Alright, I'm trying to reproduce the thing right now.

Obscura

So... I also wasn't being able to get his result in the way he gets it, but I could get it with changing a few things. This setup results exactly what he gets:

I used "masks" compression mode and disabled sRGB. Switching to masks compression mode require your samplers to be in that mode. Also, you can give more contrast to your textures with the RGBCurve when you open a texture in the content browser.

SimonT

Thanks man! I tried it out it this looks way better!
https://www.youtube.com/watch?v=Eu6KBPhQ_iQ&feature=youtu.be

Obscura

Looking cool. Glad I could help you. It could be also used for procedural clouds on a procedural skydome material.

SimonT

Yeah it can be used for so much But it's still a mystery how this guy did it with just ADD I guess we'll never find out.

McGreed

Kinda dickish move to disable comments, if he didn't want to reply on questions he could just ignore them, and still let others exchange comments and help each another. Always hated when comments are disabled from youtube videos.

Vailias

If you're not getting the same result, pick it apart as to how that could be.

Clearly you know that a standard texture has values from 0-1 for black to white. so if you add 0.5 there should be no black at all, especially with the additional add of the textures to each other. Given his example, and that there is black after all that addition, the only option is that the blacks you're seeing start out with a negative value.
Also telling is that his blue channel is a solid color yet appears very dark in the thumbnail.
The image he's using is most likely being imported as a normal map, so its unpacked from -1 to +1. So when you add the channels you're getting a range of -2 to +2, which is actually very much what you want when you want cloudy interference patterns like this. However, by adding the 0.5, he's bumping up the median value (altering the range from -1.5 to 2.5).
You can set your own texture import range by opening up the texture itself in Unreal. There are a large number of little options you can alter there.

Your output will look more like this:


The cloud texture will change much more organically that way also.

Yes you can do procedural clouds for a skydome this way, you'll just need to choose your Perlin noise textures carefully and likely add a number of them at differing scales.
