Workshop bug or my fault

Andumy

I have a problem with my void head and i don't get why.
As you can see in this 2 pictures the head looks deformed and decentrede



i use maya 2014 and i've never expected something like this.i skinned the head to every posible bone ,deleting history and non deformer history ,freezing and reseting transformation and still nothing.i even replaced my model with the default model and then deleted the default and still same thing.
My model has the neck edges like the default so it shouldn't have holes and stuff.
if anyone have any ideea how to solve this porblem i would be very thanksfull:poly142:

vlad_the_implyer

Could you post how it looks in maya/supposed to look?

Andumy

ps: my model verticies from neck are snaped to the default verticies so the problem is not there

mbknielsen

Does the bone have any odd rotation? I had a weird skinning problem because one the bones supplied in the valve warlock file had a 78degree rotation.

Andumy

Nope.the bones doesn't have any rotation .i start to belive that the model is deformed rather than rotated. It's wierd because if i test the default model it looks normal,if i change the default with mine ,this thing happens.so i suppose that i do something wrong ??

Farfarer

Are the skinning values set up correctly? I imagine it wants to be mostly weighted to the head with some of the border verts weighted to the neck and maybe spine/clavicles.

You'll need to weight the vertices along the join with the body with EXACTLY the same values as the body mesh has for those verts, otherwise you'll get seams when it deforms.

Andumy

i forgot to say.When i import the fv_head.fbx i get this message
This is how i do the skinning:

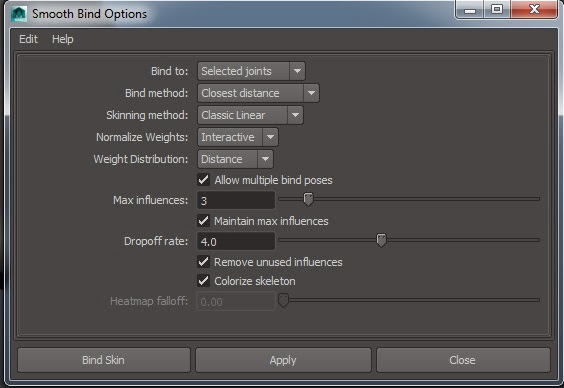

delete deformer and non deformer history for all,freze and reset the transformation for my mesh,select mesh+joint and bind skin with this options
and export selection(only mesh) as fbx

Hawt Koffee

what about your export settings?

Andumy

the fbx setting are the default one ,only that export as fbx 2009.if i export as 2010 or early it give me a mdl error when i try to upload.But as i said i don't think that the problem is from the export because i exported the default head and it was ok.

Sumers

upload your files on some server. we'll take a look

Andumy

http://speedy.sh/NCEZr/fv2.fbx

Sumers

ok the only problem i can see here is that ur binded head only with one joint.
do this:
1 delete history
2 skin>smooth bind> and select "bind to: joint hierarchy"
3 select original head and with Shift your head
4 skin>edit smooth skin>copy skin weights

Andumy

Oh man thx ,this solved the problem ,thank you very much:)

Andumy

done and published
