Building a voxel sphere?

sixteenbits

I'm trying to find an easy way to make a voxel sphere. Basically it needs to look like this, ideally solid rather than hollow: http://www.plotz.co.uk/_gfx/voxel_sphere_1.png

I'm using Maya? Any ideas?

adam213

I'm looking for a simple way to create a solid voxel sphere in Maya—something that looks like this: https://minecraftcirclesgenerator.com/ . Any suggestions?

Klunk

isn't it just compute a grid of points (center of the voxel) if the point is inside the sphere (it's distance from the center is less than the radius) create the voxel else don't .

poopipe

Yes

Pretty simple for a sphere.  I imagine a robot could probably generate some Maya python for it

It gets more complex if you need it to align with a world grid.

Can MASH do it?

Noren

Not a Maya user, but some particle systems can do this pretty much out of the box, so Bifrost, perhaps?

Klunk

some maxscript may help you do the same in maya

fn voxel_sphere radius segs =
(
	size = 2 * radius/segs;
	for h = 1 to segs do -- height (z)
		for w = 1 to segs do -- width (x)
			for l = 1 to segs do -- length (y)
			(
-- compute the grid point

				pos = [-radius + ((w - 1) * size), -radius + ((l - 1) * size), -radius + ((h - 1) * size)];

-- in sphere test (also a culling spherical test to stop max chugging like puffing billy)

				if (length pos) < radius and (length pos) >= radius - size then
				(
					box width:size length:size height:size pos:(pos + [0,0,-size * 0.5]) wirecolor:blue;
				)
			)

)

delete geometry
voxel_sphere 10.0 30

result

p.s. seems to work best with an odd number of segments

okidoki

Blender does have a Remesh modifier with a Blocks option and using an icosphere  might get more consistent results than an UVsphere (difference on the "north/south" poles and the other "axis poles"). To replicate the exact rasterization you might want to play with the scale factor of the modifier

Klunk

a slight variation or how you simplify the geometry....

--**********************************************************************************

fn make_cube_side tmesh fi f1verts f2verts matid smg =
(
	setface	tmesh fi f1verts;
	setEdgeVis tmesh fi 1 true;
	setEdgeVis tmesh fi 2 true;
	setFaceMatID tmesh fi matid;
	setFaceSmoothGroup tmesh fi smg;
	fi += 1;
	setface	tmesh fi f2verts;
	setEdgeVis tmesh fi 1 true;
	setEdgeVis tmesh fi 2 true;
	setFaceMatID tmesh fi matid;
	setFaceSmoothGroup tmesh fi smg;
	fi += 1;
)

--**********************************************************************************

fn make_cube pos size sides =
(
	tmesh = trimesh();

	setnumverts tmesh 8;
	setnumfaces tmesh (sides.numberSet * 2);

	setvert tmesh 1 [pos.x - size, pos.y - size, pos.z - size];
	setvert tmesh 2 [pos.x + size, pos.y - size, pos.z - size];
	setvert tmesh 3 [pos.x - size, pos.y + size, pos.z - size];
	setvert tmesh 4 [pos.x + size, pos.y + size, pos.z - size];
	setvert tmesh 5 [pos.x - size, pos.y - size, pos.z + size];
	setvert tmesh 6 [pos.x + size, pos.y - size, pos.z + size];
	setvert tmesh 7 [pos.x - size, pos.y + size, pos.z + size];
	setvert tmesh 8 [pos.x + size, pos.y + size, pos.z + size];

	fi = 1;
	if sides[1] then -- +x
		fi = make_cube_side tmesh fi [2,4,8] [8,6,2] 1 1;
	if sides[2] then -- -x
		fi = make_cube_side tmesh fi [3,1,5] [5,7,3] 2 2;
	if sides[3] then -- +y
		fi = make_cube_side tmesh fi [4,3,7] [7,8,4] 3 4;
	if sides[4] then -- -y
		fi = make_cube_side tmesh fi [1,2,6] [6,5,1] 4 8;
	if sides[5] then -- +z
		fi = make_cube_side tmesh fi [5,6,8] [8,7,5] 5 16;
	if sides[6] then -- -z
		fi = make_cube_side tmesh fi [1,3,4] [4,2,1] 6 32;
	tmesh;
)

--**********************************************************************************

fn block_sphere radius segs =
(
	vmesh = editable_mesh();

	hsize = radius/segs;
	size = 2 * hsize;

	for h = 1 to segs do -- height (z)
		for w = 1 to segs do -- width (x)
			for l = 1 to segs do -- length (y)
			(
-- compute the grid point

				pos = [-radius + ((w - 1) * size), -radius + ((l - 1) * size), -radius + ((h - 1) * size)];

-- in sphere test (also a culling spherical test to stop max chugging like puffing billy)

				len = length pos;
				if len < radius and len > radius - size then
				(
					sides_to_keep = #{1..6};

-- test for neighbours on x axis

					temp = pos + [size,0,0];
					if length temp < radius then sides_to_keep[1] = false;

					temp = pos - [size,0,0];
					if length temp < radius then sides_to_keep[2] = false;

-- test for neighbours on y axis

					temp = pos + [0,size,0];
					if length temp < radius then sides_to_keep[3] = false;

					temp = pos - [0,size,0];
					if length temp < radius then sides_to_keep[4] = false;

-- test for neighbours on z axis

					temp = pos + [0,0,size];
					if length temp < radius then sides_to_keep[5] = false;

					temp = pos - [0,0,size];
					if length temp < radius then sides_to_keep[6] = false;

-- create the geometry

					local cube = make_cube pos (size * 0.5) sides_to_keep;
					attach vmesh cube;
					free cube;
				)
			)

	meshOps.removeIsolatedVerts vmesh;
	meshop.weldVertsByThreshold vmesh #all 0.01f;
	update vmesh;
	vmesh;
)

delete geometry
block_sphere 10.0 31

poopipe

i give it two days before he decides to generate and cache chunks

.. or better yet decides to have it fill arbitrary meshes

ZacD

Just for fun, I did it with a UE5 construction script. Anything above 20^3 (which is 8000 instances) is too laggy to move around in real time

Klunk

I tried 129 in max..... it was unresponsive for about 5 mins then drew the lower third and thought fuck this and crashed

ZacD

I tried 50^3 and it worked but took like 15 seconds, at 100 it decided not to do anything.

tsungyuw

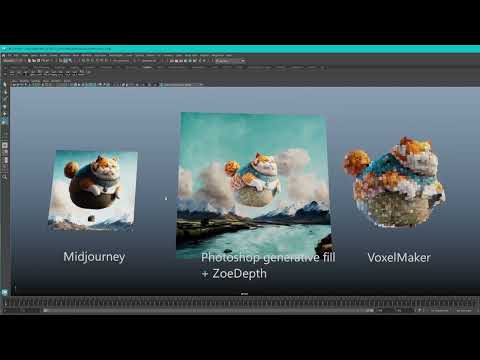

I made a script before to create voxel out of a model, but I think use maya Mash is a faster option
https://www.youtube.com/watch?v=i_Y1m4AuD3M
